A Messy Model Railroad is a Happy Model Railroad

Before you get upset and say something you might regret later, let me explain. I’m making progress on my model railroad and I’m excited about it. It’s been a long time since I spent more than an hour with my layout. In the last few days I’ve probably spent fifteen hours with The Maple Valley Short Line.

I don’t claim to be an artist so mixing paint colors has never been a familiar task. To me it’s a matter of meeting a need and mixing until it looks presentable. There is also the challenge of the paint’s response to plaster and how it will look when it’s dry. So far so good.

Model railroading is a lot of fun and there are many rewards on the path to a finished layout. Part of the excitement is that a layout is never really finished, at least not for me.

This piece is the result of my first use of a latex mold. I think it turned out pretty great. I’ll paint it with a grayish wash and touch it up with some highlights of darker and lighter shades. What I’m not sure about is how many of these I can get away with using. I have smaller molds as well so I’ll mix them around the layout

This model railroad represents several firsts for me. I have never modeled a river before and I have already made some mistakes. I made the river area too wide for my bridges so I had to adjust the width in a few areas. I also had no idea how expensive the water-pour mixtures are. Ugh! Oh well, I’ll work around it. I’m going to use a deep-pour clear mixture. I left chunks of plaster on the river bed which should be visible through the hardened water material.

I’m also in the process of building another bridge. Because I didn’t leave enough space between the beginning of my incline and the end of the decline, it’s necessary for me to place two #6 turnouts end-to-end so I can move trains from the outside to the inside mainline, and vice versa. They will come together over the river! (Another mistake.)

These are my tools for building bridges and just about everything else. I use a lap board with a measuring-cutting pad. To begin construction I use a piece of 1 1/2 inch foam about the same size as my lap board. I pin and glue the basswood and balsa piece by piece. We have enjoyed several Netflix series while building great scenery items!

Back to my messy model railroad. I like busy-ness. I like stuff. I’m not good with tools because I have a terrible habit of not putting them away. I leave them where they were needed, so I have about a dozen screwdrivers. I like the look of a mess as long as there are good things happening.

Some day the paint, plaster, brushes, containers, tape, and all the other clutter will be gone. What remains will be a fantastic model railroad. Just after I drive the golden spike I’ll start thinking about how I can change the layout to make it better. That’s the way model railroading works.

Thanks for reading my post. If you enjoyed it, there might be more posts you will enjoy. Please consider following A Coffee State of Mind. If you know someone who might like these posts, send them the link. Thanks!

Where’s my coffee?!

Model Railroading Scenery Techniques

I’ve been struggling with a couple of things on my model railroad. I love my scratch-built basswood and balsa bridges. I used dark brown spray paint and I had to decide how to apply weathering finishes.

I used a mixture of Ceramcoat acrylic paint, light gray, dark brown, a little yellow, a little red, and green. At first, I used too much green and I had to make some adjustments. After I stirred in a pint of plain water I ended up with a grayish wash that after a couple of coats looks great.

The second thing I’ve been trying to figure out is how to blend the styrofoam risers into the surrounding areas. I had an epiphany! I didn’t want to cut strips of cardboard as there would have been a ton of them. I thought of a way to use cardboard, cut it on a 2% incline, then fold it down to meet the layout base.

My first step is to hold a piece of cardboard against the riser and use a marker to draw a line its entire length. I transferred the mark to the opposite side of the cardboard so my finished piece is not backwards when I apply it.

After I transferred the line to the opposite side of the cardboard, I used a straight edge and a blade to cut 1/4 inch above the line. The extra space above the line is the distance between the outer edge of the riser and the fold.

Next, I used the blade to score just the outside layer of the cardboard. I then folded the cardboard on the cut. I used a piece of wood to mash the cardboard to crush all the cells inside, making the cardboard much easier to work with. Then I laid out a piece of 1-1/2 inch tape, sticky side up, the length of the cardboard. I carefully placed the small folded area against the tape, leaving 1/4 inch.

I carefully picked up the cardboard and tape, then set the edge of the cut section against the outside corner of the riser. I pressed the tape extending from the edge of the cardboard onto the riser surface. I then folded the remaining cardboard down from the cut to meet the layout surface. I pressed the remaining tape down onto the cardboard.

I now have a grade from the side of the riser I can live with. I’ll lay plaster-covered paper towel squares on the cardboard from the edge of the cork roadbed to the base surface. I’ll doctor it up with tools and paint washes so the finished grades don’t look like paper towel covered with plaster.

Another little trick is to score the cardboard on the opposite side of the radius so it is easier to tape around a curve. I cut the tape as well so it’s easier to secure to the riser edge.

Recently, I’ve been spending more time working on the layout and I’m happy with my progress on The Maple Valley Short Line.

If you enjoyed this post, please consider following my blog. I write about a wide variety of topics and my coffee is always close by.

Thanks!

Model Railroading Beats Covid Stress

Model railroading is a terrific way to lose yourself in details that have absolutely nothing to do with the media, bad news, worse news, health scares, or Covid.

It’s been almost four months since I worked on my model railroading project, The Maple Valley Short Line.

Part of model railroading, at least for me, has been anticipating but not being upset by the feeling of hitting a wall. My motivation to build disappeared. Today I reactivated and found it.

Even as I stood in front of my layout, it wasn’t until I actually started measuring, cutting, and gluing that I began to feel motivated.

I discovered installing scratch-built bridges is difficult. Making sure the bridge deck is the same level as the cork roadbed which means boring holes in plaster and foam takes time. When it’s done, it will be fantastic.

Plaster is a necessity in model railroading if you’re seeking for realism in your scenery. It takes time and is messy, but well worth the effort.

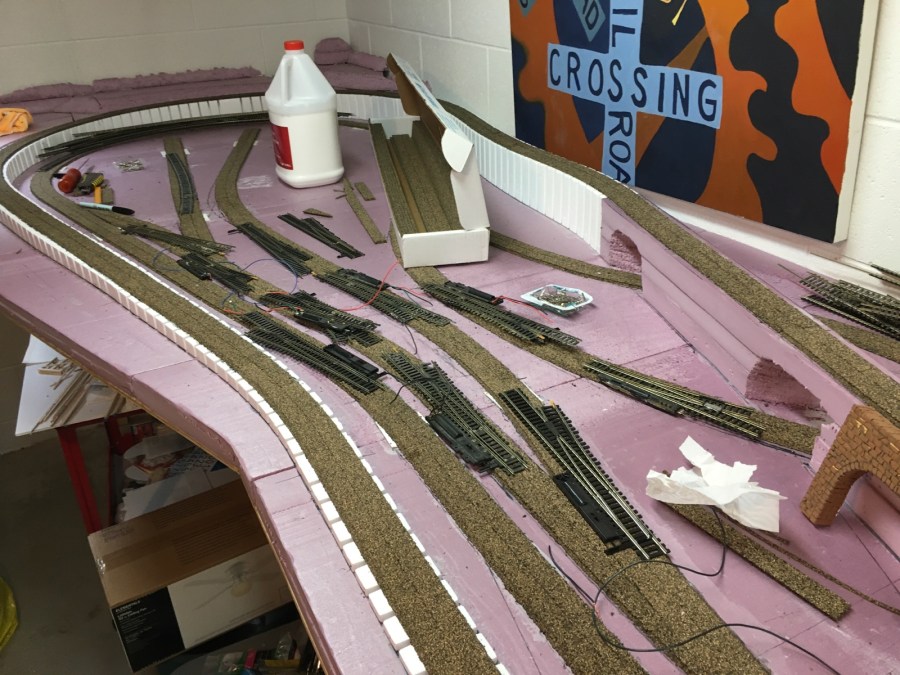

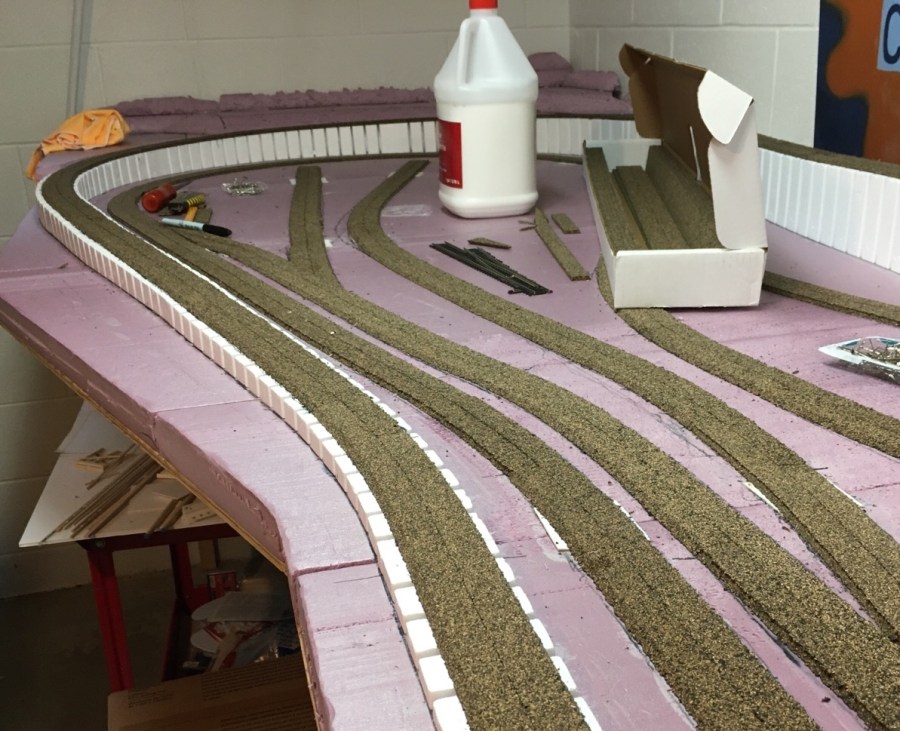

I have been challenged by the need to cover my styrofoam risers and blend them into the scenery in a way that looks realistic. I’ve thought about covering crumpled paper with plaster, but wondered about mold forming on the paper from the moisture.

I thought about using cardboard strips with plaster, but with one to four inches across thirty-two feet of riser, that is a lot of cardboard to cut and cover. I’m still working on it. I think I’ll use a combination of paper towel and pieces of foam dipped in plaster.

Gluing cork roadbed is time consuming but so rewarding! Covid stress floats away like a crumpled leaf in the wind. Cork roadbed is a model railroading task that you start and finish even though the layout still has a very long way to go.

The river I decided to dig across the middle of my layout added a tremendous amount of work, but I’m excited about how it’s going to look. This will be my first time using the epoxy mix that becomes “water”. I’ll paint the plaster first then pour the magic liquid.

Model railroading is a lot of fun. It provides a great opportunity to see what can be done. Everything is changeable, there really is no such thing as a mistake.

I can’t wait to see my steam locomotive rumble across this bridge. The extra work setting and leveling this scratch-built model is more than worth the time.

I can start placing my nickel-silver flex-track any time. That’s when the layout really starts looking like a railroad. I’ve been working on my model railroad for a long time already. Every step has its own rewards.

I’m looking forward to the day when I can start setting all the houses and buildings I spent last winter creating. Trees, grass, weeds, junk, sticks, fences, rocks, stones, lights, signals, backdrops, ballast, and more junk. Love it.

All this makes me want more coffee. Model railroading and coffee. Inseparable partners.
